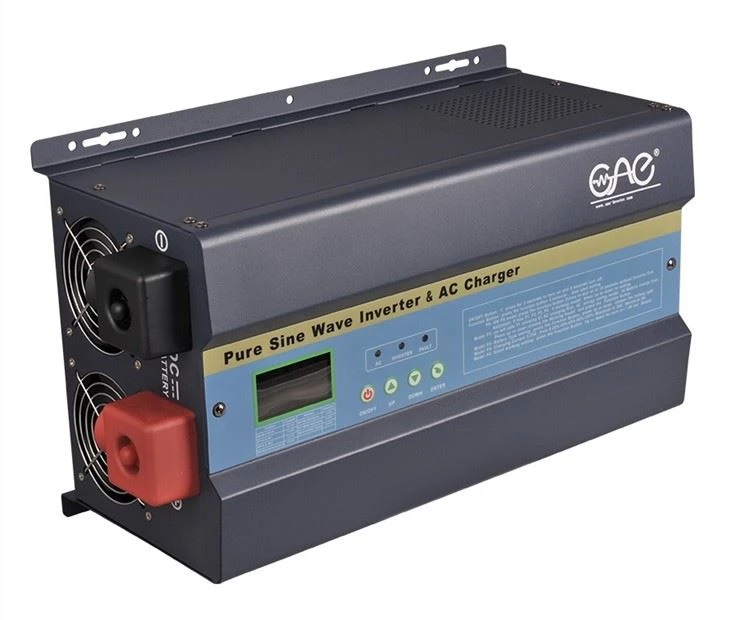

1500W Hybrid Solar Inverter 24V - cost-effective off-grid power supply solution

1. Efficient energy conversion

<3%), conversion efficiency ≥93%

Peak power 3000W, support motor equipment start-up (such as water pumps, refrigerators)

24V battery system compatible, input voltage range 20-30V DC

2. Intelligent protection system

Five-fold protection of overvoltage/undervoltage/overload/short circuit/overheating

Intelligent cooling fan (automatic start when temperature>45 degree )

Less than 1W standby power consumption, energy saving and power saving

3. Super cost-effective

The price is only 60% of the same specification industrial-grade products

3-year warranty, service life 8-10 years
II. Solar system construction plan (24V/60A MPPT)
1. System configuration
Solar panels 350W (Voc=45V) 5 pieces Total power 1750W
MPPT controller 60A/150V 1 unit Conversion efficiency 98%
Lithium battery 24V 200Ah 1 set 4.8kWh capacity
Inverter 1500W 1 unit Peak 3000W
2. Power generation calculation

1750W×peak sunshine hours
Average daily equivalent sunshine in China: 4 hours (average value)
System efficiency: MPPT efficiency: 99%, line loss: 2%, battery charging efficiency: 95%, comprehensive efficiency: 90%

1750W×4h×90%=6.3kWh
3. Load support capacity

1P air conditioner (900W) running for 5 hours
Or refrigerator (200W) + TV (150W) + lighting (100W) all day use
Or 2kW water pump running for 2 hours

This 1500W Hybrid Solar Inverter 24V system:

The average daily power generation is about 6 degrees

It can meet the basic electricity needs of a family of 4

The investment payback period is about 3 years

It can be upgraded to a 48V system (supporting higher power) in the future

Note: The actual power generation will be affected by factors such as geographical location and seasonal weather. It is recommended to reserve 20% power margin.
